Elements Allowed In Models

Elements Allowed In Models

This Rule checks all the graphical elements in all model spaces in a DGN file against those element types explicitly set as 'allowed'.

Parameters

Multiple: Allow {Element Type Name} - a toggle value ON/OFF.

Explanation & Examples

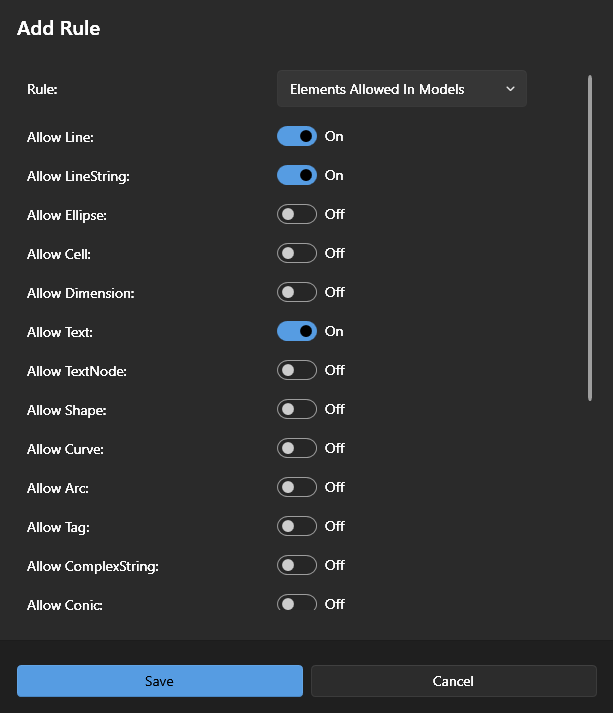

1. If you want to check that the models in a DGN file ONLY contain Lines, LineStrings and Text, then add this Rule to your Rule Set with ON as the toggle parameter value next to each option as in the below screen shot:

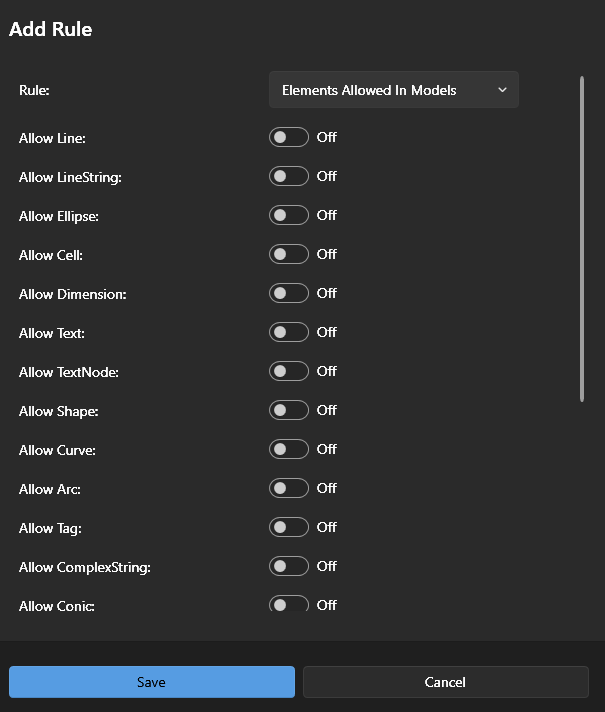

1. If you want to allow NO ELEMENTS in models in a DGN file, add this Rule to you Rule Set and make sure all toggles are set to OFF as in the below screen shot:
